Reverse Osmosis Systems
The RO System works on the principle of Reverse osmosis, also known as hyper-filtration. One of the finest techniques for treating water, reverse osmosis eliminates contaminants from water thus making it fit for drinking purpose and other commercial and industrial applications. The RO system is provided with sediment pre-filter and an activated carbon filter as the membranes are degraded by chlorine, bacterial attack, manganese, hydrogen sulfide and iron. Advanced models of RO Systems are also attached with water softeners.
Available as:
Commercial Reverse Osmosis System
Residential Reverse Osmosis System
Portable Reverse Osmosis System
Heavy Duty residential Reverse Osmosis System
Working
Stage 1: Removes dirt, sediment, sand and other physical particles
Stage 2: Granular Carbon Filter which reduces chlorine, organics, odor, smell and turbidity from water
Stage 3: Block Carbon Filter that further reduces chlorine, odors and other chemicals
Stage 4: Reverse Osmosis Membrane in which bacteria, heavy metals, salt, bad mineral substances and other dissolved matter and chemical drugs are removed from water
Stage 5: Rear anti-bacteria activated carbon filter that improve the taste of water
Technical specifications
Allowed pressure for source water: 0.1-0.3Mpa
Work temperature: 5-40? Max of original water
TDS: 1000ppm
Output: 100-400G/Day
Flush Type: Auto flush
Fitting: Common fitting or quick connect fitting
Volume of pressure storage tank: 11G Rated voltage
Frequency: AC220V/50Hz
Rated power: 50W
Precision of purification: 0.0001um
Transformer: 24V(220V)
Application areas:
RO Systems are used in Homes, offices, hospitals, clinics, Nursery homes, beauty salons, gyms, schools, restaurants and shops. |
|
COMMERCIAL REVERSE OSMOSIS PLANT |

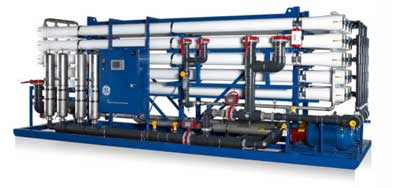

Commercial Reverse Osmosis Plant
Product Description
Commercial Reverse Osmosis Plant removes all the impurities from water making it fit for varieties of commercial activities. Installed at commercial establishments like shopping malls and hospitals, the commercial RO plants are considered as the most cost effective water treatment system. It cleans the water from contaminants and removes non essential, metals, corrosive salts and chemicals present in the water.
Working
Pre-Treatment
Clarification of water
Sand filtration
Water softening for reducing the hardness
Water is passed through activated carbon filters
Final removal of suspended particles using cartridge filters
Post-Treatment
Oznonation
Ultra-violet
Chlorination Systems
Technical specifications
Voltage: 5 HP
Duty Cycle: 12 h
Production Capacity: 100 LPH (Liter per hour) to 100 M3 per hour
Output TDS: 400 TDS to 45,000 TDS
Membrane: 4 No 4040
Dimensions: 4’ x 2’ x 4’ (l x b x h)
Inlet Water Pressure: 7 Kg to 14 Kg
Filter Cartridge: 3 No 20’ each
Booster Pump: Multi Stag
Application areas:
The Commercial Reverse Osmosis Plants are widely used for:
Purification of drinking water
Dialysis
Reef aquariums |
| |
INDUSTRIAL REVERSE OSMOSIS SYSTEM PLANT |

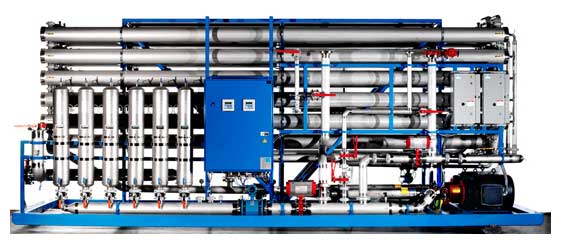

Industrial Reverse Osmosis System Plant
Industrial reverse osmosis system plant is best suited for small and large scale industries. This type of reverse osmosis plant can be configured easily as per the individual requirements of output water. It produces high-quality demineralised water for various industrial applications. A systematic programme is integrated in the plant for studying the chemistry of water. Depending upon the contamination level of water, the RO plant itself selects the most suitable membrane configuration to provide a plant which gives a low water-rejection rate.
Working
The input stream water is first passed through Pressure sand filter Unit
Removal of suspended matters and turbidity from water
Filtered water is then passed through activated carbon filter
Color, odor, chlorine, oil& grease get removed from raw water
For removing micron sized particle, the water is then passed through micron cartridge filter
The purified water is then stored in a storage tank with disinfection units
Technical specifications
50 to 2000 Liter per Hour capacity
Output TDS: 10-50 ppm (input water with TDS levels under 600 ppm)
Pressure: 20 psi – 60 psi
Free Chlorine: <.1 ppm
Temperature: 35°F - 85°F
PH: 5.8 – 10
Silt Density Index: 5 (max)
Electrical: 1/ 3 phase, 220-230/440Volts AC supply
Turbidity: 1 NTU (max)
System Efficiency
Percentage ionic rejection >96%
Percent recovery 50-75%
Application areas:
Effluent and wastewater purification
Food processing industry
Car washing
Hydrogen production
Fruit syrup production
Beverage industries |
